Extra Strength
Extra Insulation
Superior In Every Way
Equipped with 2-1/2" of cavity insulation in various configurations
5000+ PSI concrete reinforced with rebar and polypropylene fibers
Precast access holes for wiring and plumbing
Thermally isolated and insulated from the exterior
Insulated corners, studs, and bond beam
Monolithically poured for greater strength
Galvanized steel stud facing
Insulation may reach R-50+
No additional damp-proofing required
Precast openings for windows and doors
Reduces building time
Ready for installation in virtually any weather
Product Information

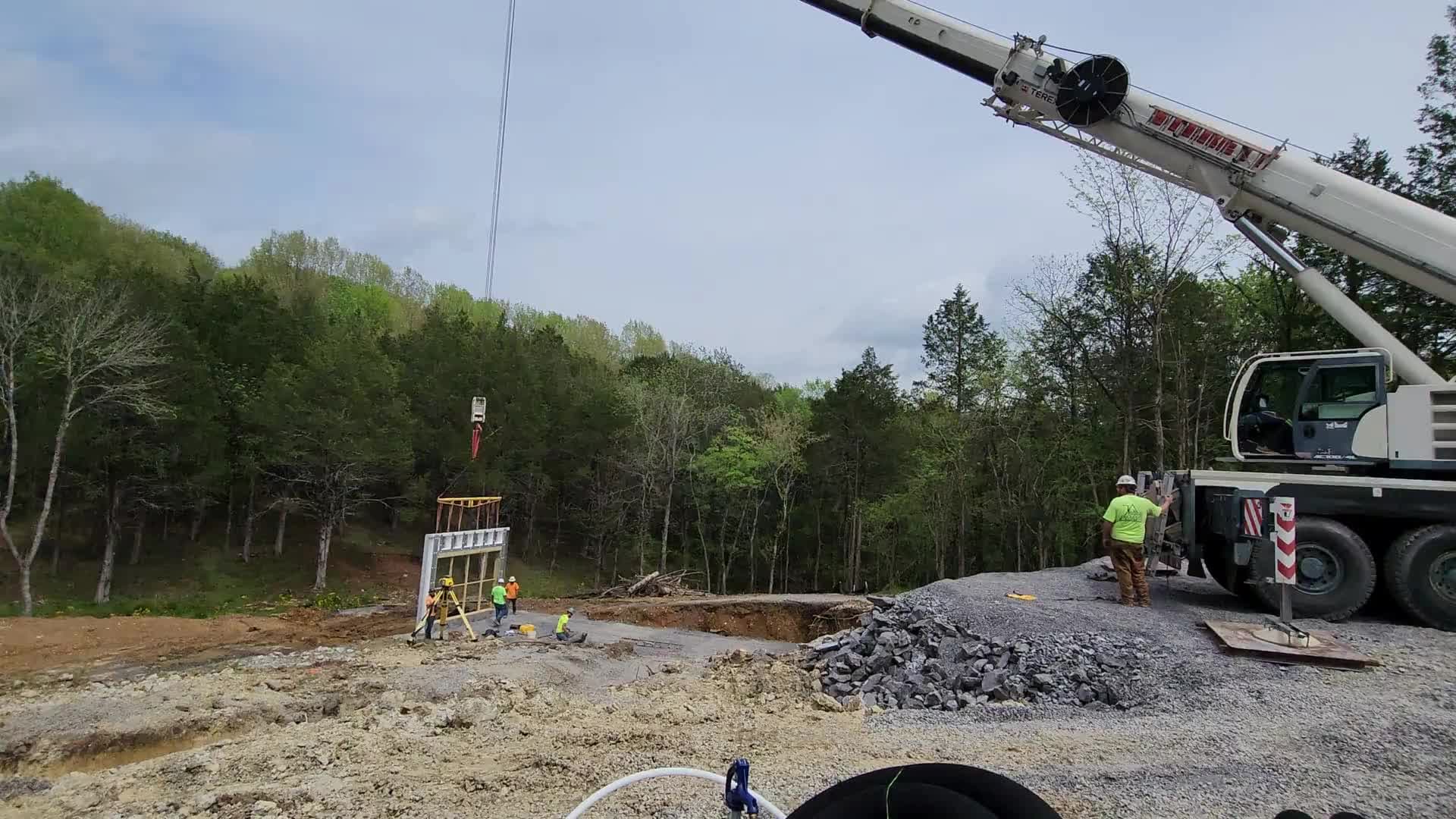

Superior Walls™ foundations feature patented, insulated, precast concrete wall panels that are formed in a factory-controlled setting and delivered to the job site, where the panels are lifted into position with a crane and carefully bolted together and sealed. The walls are custom-designed and built to virtually any architectural style, complete with window and door openings.
Superior Walls™ panels are available in a variety of standard heights and custom lengths and various insulation configurations to suit your project. The maximum axial load [uniform house weight) for this product is 7500 pounds per linear foot. Special point loads up to 50,000 pounds can be accommodated.
The Xi Wall
QUALITY ASSURANCE
Each manufacturing plant is regularly inspected by an independent third-party inspection agency to ensure compliance with the Quality Assurance program. In addition, manufacturing and installation personnel are certified by Superior Walls™.
DAMP-PROOFING
The concrete used in the Superior Walls™ wall systems provides protection against freeze/thaw cycles and water vapor transmission. The urethane sealant used between panels provides superior protection against water penetration. Therefore, no additional damp-proofing materials are required.
VAPOR BARRIER
No Vapor barrier required. Permeance of the Superior Walls™ panels have been tested in accordance with ASTM E96.
FIRE RESISTANCE
Based on full scale fire testing, Superior Walls™ panels manufactured with the insulation configurations identified in our code evaluation report, do not require the attachment of a 15-minute thermal barrier.
Superior Walls™ products qualify as a two-hour fire separation wall when two layers of 5/8" Type 'X' drywall are applied to the studs.

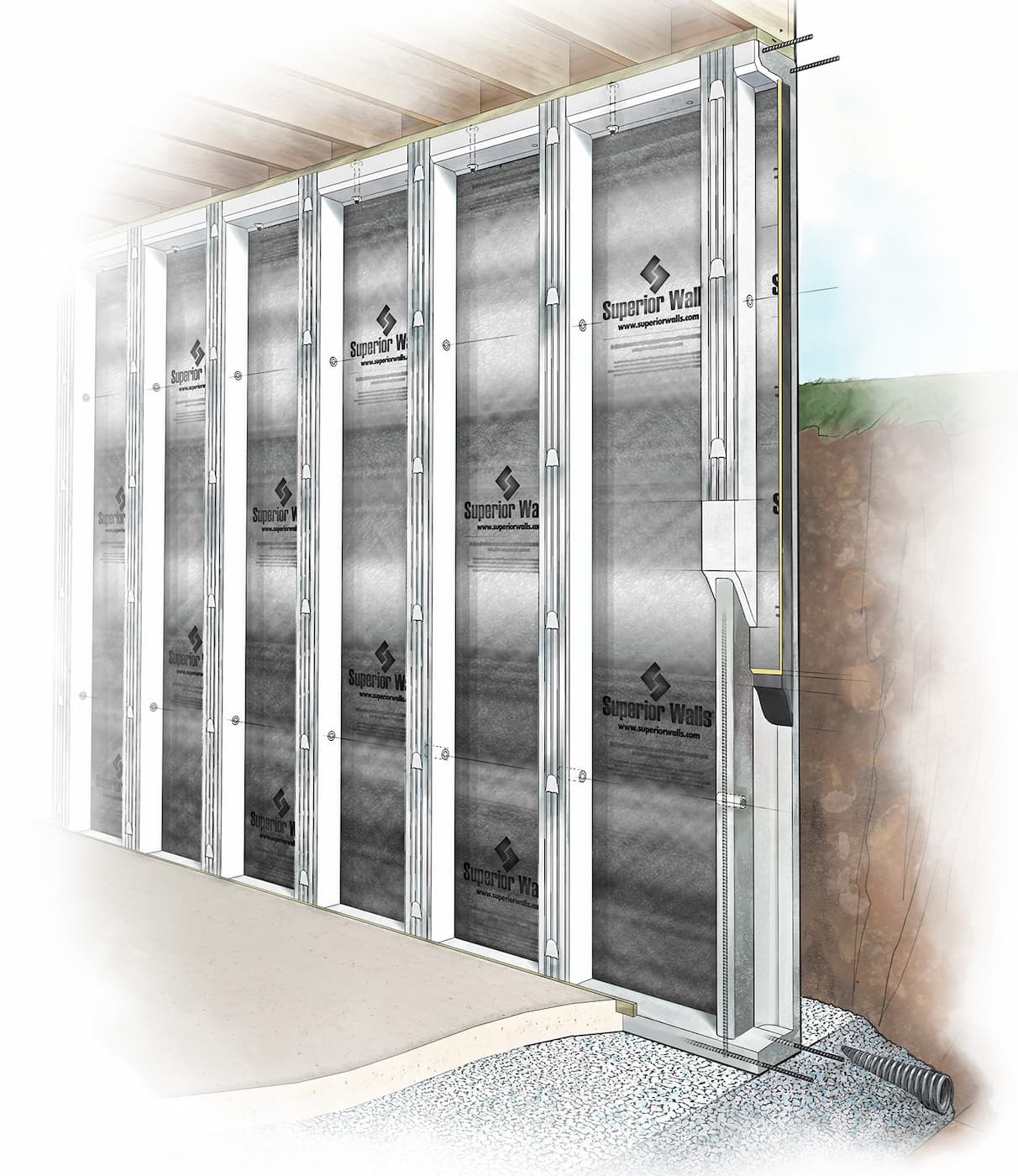

The Xi Wall Precast Foundation System
Dry
Your permanent barrier against sidewall water penetration
Clean Crushed Stone Footing Shown
Auxiliary Drain Pipe
Urethane Sealant Is Applied In All Joints For A Permanent Moisture Barrier
Warm
Warmer in winter, cooler in summer... reduces your home's energy loss
Polyisocyanurate Insulation Covering Rigid Foam Insulation
1" Foam Insulation on Concrete Studs
1" Foam Insulation on Bond Beam
Smart
Ready to finish with access built-in
Access Holes for Ease in Wiring and Plumbing
Galvanized Steel Stud Facing Ready for Drywall Finishing
CAD Custom-Designed to Virtually Any Home Style
Laser-Leveled to be Plumb, Level, Square
Installs on Your Site in Just Hours for Time and Money Savings
Superior
Made in a controlled factory environment to ensure that your new home's foundation will be built to the industry's highest standards...
5,000+PSI Concrete for Superior Strength
10-1/4" Overall Wall Thickness
Steel Reinforced Top Bond Beam
1-3/4" Concrete Face Shell
10 Steel Reinforced Concrete Studs
Steel Reinforced Footer Beam
Concrete Floor
